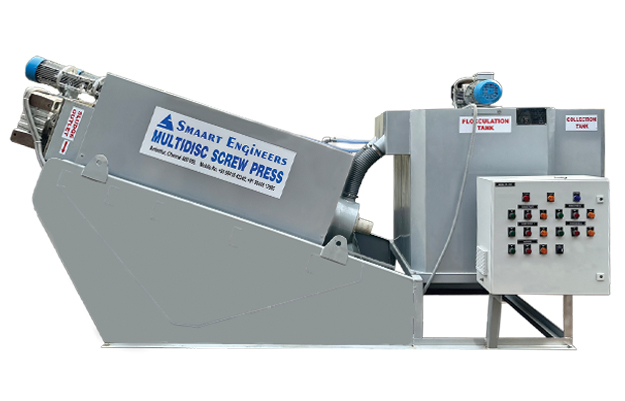

Smaart Engineers screw press sludge dewatering machine is a kind of economic and environmental friendly sludge dewatering equipment. It is a new type of sludge extrusion dewatering equipment by using the principle of screw extrusion, through the strong squeezing force generated by the change of screw diameter and screw pitch, and the tiny gap between the floating ring and the fixed ring, to realize solid-liquid separation..

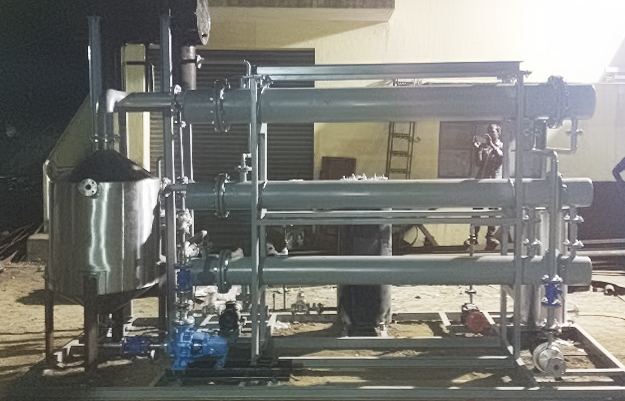

Evaporation is being considered as an alternative process in an increasing number of wastewater treatment applications. It can be effective for concentrating or removing salts, heavy metals and a variety of hazardous materials from solution. Also, it may be used to recover useful by-products from a solution, or to concentrate liquid wastes prior to additional treatment and final disposal. Most applications of the technology also produce a high quality, reusable distillate-a very important feature where water conservation is a priority.

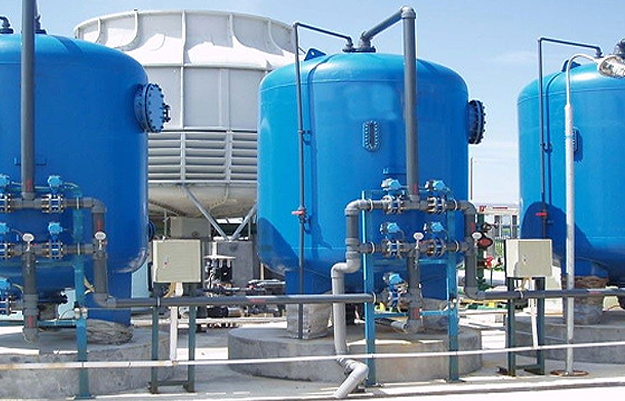

Pressure Sand Filter is used for removal of suspended solids & turbidity from Water & Wastewater. We, at Shubham offer Series of filters at a low cost, reliable and efficientway to filter your water. Our unique design of Pressure Sand filter ensures the maximum utilization of the surface area, lesser pressure drop across the filter bed and effective removal of the impurities. Shubham Filters are available in diameters from 0.225 Mts. to 4.0 Mts.(vertically) and in length from 3.0 Mts. mm to 11 Mts. (Horizontally) with flow ratesup to 350M3/Hr. these rugged, pre-engineered, pre-assembled units minimizeinstallation and start-up costs. Whether you require ROfeed process water or filtered water, Shubham can fulfill applications requirement
Salient Features:
Simple design maximizes reliability and efficiency
Filtration rating up to 20 – 40 Microns
Standard and effective quartz sand media.
Low Pressure drop across the vessel
FRP, MSRL, MSEP & SS Vessels are available.
Manual, Semi-Automatic and Automatic features are provided
Pre-assembled construction minimizes start-up time and installation costs
Structural steel legs provide rigid support of vessel for safety
Air scouring available for high flow pressure vessel.
Proven design of internal distribution and collection system.

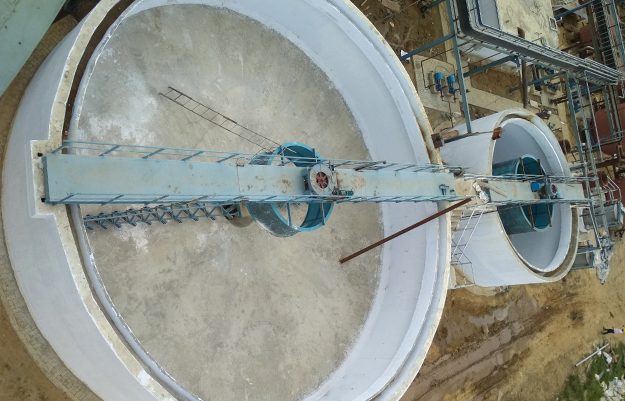

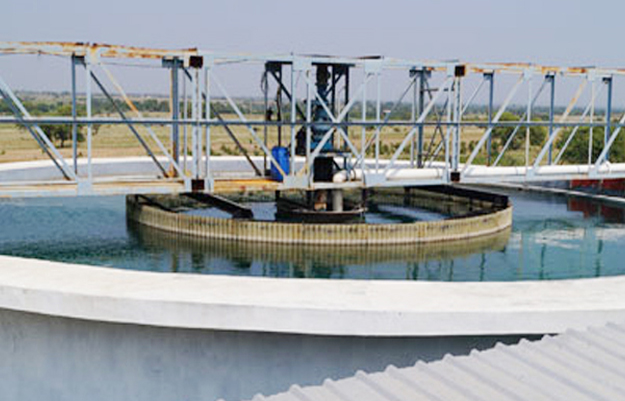

Clarifiers, Clariflocculators are widely used for reducing suspended solids load by coagulation and settling method. High Rate Solids Contact Clarifier is used in applications, where the inlet solids load is variable and if the solids are fine. Flocs formed in flocculation are settled in Tube or plate (lamella) settlers or in the settling zone of a clarifier. These equipment are used in river or lake water for high flow rates and also in ETP STPs

High Rate Solid Contact Clarifier is widely used for clarification of raw water and wastewater. These are designed to handle turbidity and to remove suspended solids. These units have an ability to offer turbidity less than 50 NTU at the outlet of clarifier.
Features
Constructed either in a steel tank /concrete basin
A unique rotor-impeller combination has made it possible to control mixing and slurry recirculation to accommodate changes in water characteristics.
Advantages
In HRSCC Flocculation, coagulation & settling processed in a single tank i.e. HRSCC Tank.
It is effective in precipitation of metal hydroxides from waste streams.
It can accommodate a wide range of flow rates and solids variations.
The unit produces a very dense sludge that minimizes sludge handling.
Rapid sludge settling and thickening
Minimum Operator attention

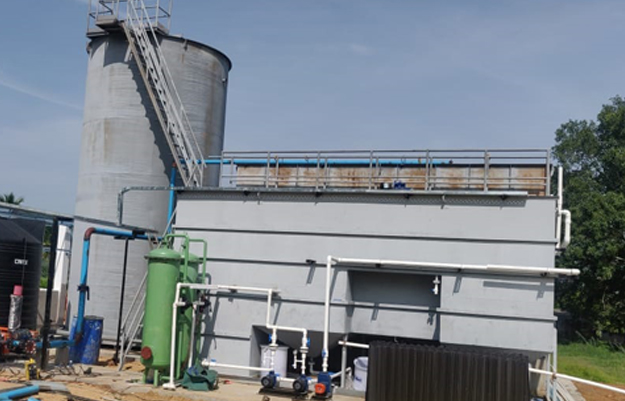

UASB reactor is a high rate anaerobic treatment process where the bacteria responsible for anaerobic digestion are present in the form of sludge blanket. The bacteria grow and reside as bacterial flocs suspended in the up-flow effluent stream. The bacteria take upon organic content of wastewater to metabolize it and produce biogas and biomass. An up flow anaerobic sludge blanket (UASB) reactor is basically a tank that has a sludge bed in which organic material is dissolved in the wastewater is degraded, and as a consequence of this digestion, biogas is produced. A blanket zone is formed in the reactor where some particles of biomass are suspended and act as a separation zone between the water flowing up and the suspended biomass. Anaerobic digestion is a process by which microorganisms break down biodegradable material in the absence of oxygen

---

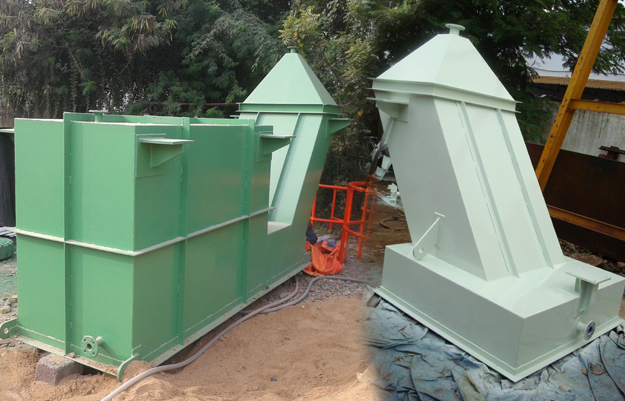

Lamella Clarifier is a water treatment process that features a rack of inclined metal plates, which cause separate liquid and solid, by directing the water between a series of inclined plates.We have established ourselves as a renowned manufacturer and supplier of Settling Tanks / Lamella Clarifier. Our products are highly appreciated by the clients for providing an effective solution for the clarification of water and wastewater.

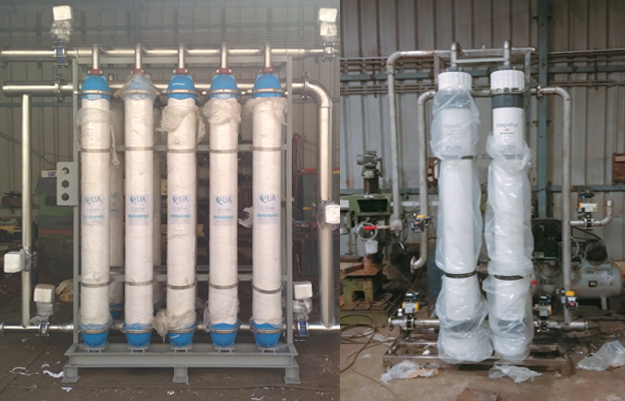

Being a prominent manufacturer, supplier and exporter of Ultrafiltration Systems, we have carved a distinct niche for ourselves and have successfully raised the bars of customer satisfaction. Moreover, Ultrafiltration Systems are manufactured following stringent quality parameters adhering to global standards. Ultrafiltration Systems are also serviced by us to ensure hassle free performance and long functional life.

Features:
Automated Control: High Pressure and Low Pressure, Low feed pressure Tank Full, High TDS
Manual and Auto Monitoring: Product TDS
System Status and Warning Lights
Gauges: Vessel are mad FRB and MS ( Differ by plant Capacity ) Vessel array in/out and filter in/out. Single operate multiport valve. S.S
gauges with bronze internals, glycerin filled and mounted on front panel
Valves: Brine and recirculation valves, globe-type, mounted in the last vessel brine line
Prefilter: FRB with 2” MPT ports for 6” * 20 ( Optional ), 10 Micron Bags
Pump: S.S Impeller, wetted parts
Frame: Powder coated steel construction on levelers
Schedule 80 PVC Plumbing
Flow monitoring for product, brine and recirculation

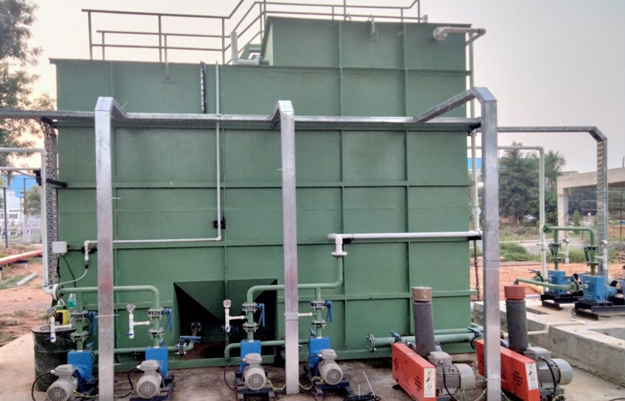

Fixed-bed bioreactors, or FBBRs, are advanced biological wastewater treatment technologies used for efficiently treating wastewaters with high to extremely high organic contamination levels. Of all biological treatment systems, FBBRs can hold the most contaminant-eating microbes in the smallest area, which makes them space-saving and energy-efficient technologies ideal for treating wastewaters with medium to very high BOD.

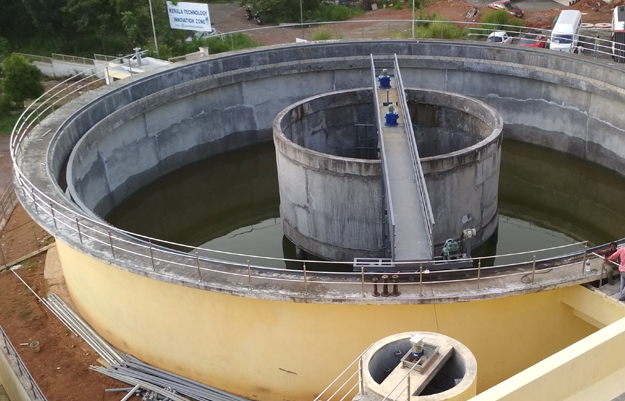

Clariflocculators are widely used for chemical primary treatment for effluent water. These Clariflocculators are designed and developed to provide an economical and faster installation of primary treatment. The innovative design enables the clariflocculator to handle heavy slugs while delivering shortest floc settling time.We supply different type of clariflocculators with built in flocculation well and paddle type flocculator in the flocculator well which help in creating flocks. There is no need to give separate flocculation tank with flocculator.

---

---

---

---
